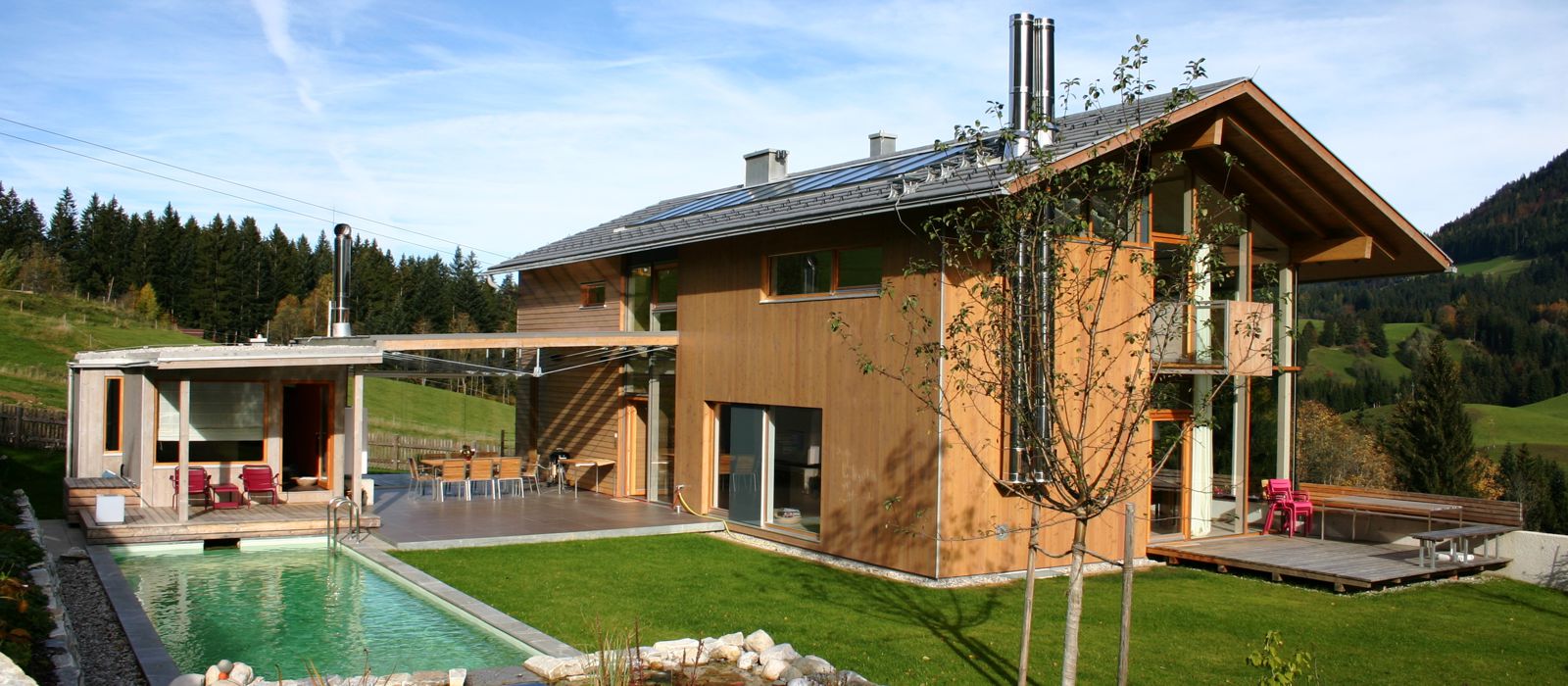

Modular House

Large-format solid wood panels are key to our modular houses.
Our panels consist of several, cross-bonded layers of solid wood.

modular house

wall

Architectural diversity combined with flexible design and construction – this is what makes our modular wall stand out. A solid wood panel of spruce, with the room-facing finish as a visible quality surface, loam rendering or drywall acts as a load-bearing basic element.

The façade can be designed optionally in a render, wood or exterior surface. This (film-free) construction method which is capable of capillary diffusion thus guarantees healthy living without artificial ventilation and maximum protection against summer heat.

timber

facade

Roll or Swedish cladding

A weatherproof panel of wood fibers is applied to the insulation for the timber façade. This prevents both moisture and wind from getting into the structure. Rear ventilation battens which support the actual timber façade are attached to the weatherproof panel.

The façade is designed entirely according to the customer's wishes. So we can offer any type of timber cladding that is available on the market. Whether open rhomboid cladding or triple-layer panels.

rendered

facade

Rendered façade of silicon resin render

In addition to our timber façades, we also offer the option of a rendered façade. This façade delivers very clean and modern aesthetics. A 2,4" thick softwood fiber board is applied to the insulation as the render base and is rendered on site.

system

technique | construction

NO FILMS

We use cross-laminated timber panels on the room side of our outer wall construction. They are airtight so there is no need to use films or the like.



Natural insulation

Our modular house walls are insulated with natural insulating materials, such as wood wool or cellulose. These construction materials are mainly untreated and are unobjectionable in terms of building ecology. As the load-bearing timber components have a high insulation value, construction time is dramatically reduced compared to brick-built or concrete houses.





fast construction time

Protected against the weather, the components are largely prefabricated as modules on our company premises. This dramatically reduces the construction time and we can start on production of the modules before the master builder is on site the first time. Depending on requirements, it is also possible to significantly minimize the construction time with visible quality surfaces and wood paneling.



1 2 3 4 5

1. roof construction

  • roof tiles
  • 1,57" roof battens
  • 1,97" counter battens
  • roofing membrane capably of capillary diffusion
  • 0,94" canopy roof and rough cladding
  • 11,81" insulation, cellulose flakes with spars between in accordance with structural analysis
  • vapor barrier
  • 3,15" cross-laminated timber panel

2. wall construction upper floor

  • 3,94" cross-laminated timber panel
  • 7,87" framework with cellulose insulation between
  • 0,63" Agepan panel
  • 1,18" ventilation battens
  • 0,94" roll or swedish cladding

3. wall construction ground floor

  • 3,94" cross-laminated timber panel
  • 7,87" framework with cellulose insulation between
  • 2,36" render baseboard
  • 0,24" putty + fabric
  • 0,12" render

4. ceiling construction: cross-laminated timber ceiling

  • 0,63" parquet floor / tiles
  • 3,15" cement screed
  • 1,38" impact noise insulation
  • 2,17" grit fill
  • drip protection film
  • 6,30" cross-laminated timber ceiling

5. floor construction

  • 0,63" parquet floor / tiles
  • 2,76" cement screed
  • 4,33" grit fill
  • 0,12" damp-proofing
  • reinforced concrete floor slab according to structural analysis

alpine wood

species

We only use native mountain woods. Our wood is harvested in the winter, air-dried for 1 year and then finally dried technically to 13 %. All woods are free of heartwood and crack-free – for the highest quality requirements.

spruce

The most common tree species in Austria due to its natural distribution in the mountains. More than 50 % of Austria's forest area is covered with spruce.

SILVER FIR

The pine is also known as the fir and is another major, native tree species used commercially with durable heartwood and good impregnability.

larch

In addition to a large number of positive characteristics, the larch is also particularly decorative. Its color can range from reddish-yellow to bright red or even an intense red brown.

swiss pine

A reasonably priced alternative to the very expensive Swiss stone pine due to its similarity in appearance and smell to the Swiss stone pine. It is relatively lightweight and yet good to machine, impregnate and dry.
